Ultimate chassis lock kit
The new S-Chassis lock kit 2.0 has all the benefits of 1.0 and more of everything
Requires OEM front subframe cutting and welding. It moves rack 46mm forward for better Ackemann curve and a bit lower for oilpan clearance. It works all big drift series rules that require OEM subframe usage, but allow modifications for rack relocation.
More usable steering lock, feel and precise handling especially with rack relocation.
Less sensitive steering. Increased steering ratio for smoother handling.
More suspension travel – less interference risk at full droop. Longstroke coilover kits can be used.
Lighter and stronger. Optimized design in combination with high strength steel is used.
60mm drop for roll centre correction.
Adjustable camber and caster with adjustable doubleplates.
Adjustable lock stopper.
Adjustable Ackermann washers included in the kit.
Other components, packaging and clearance.
This kit assumes coilovers to have enough clearance.
Dependent on rim width and ET, wider fenders or fender flares would be needed.
With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and lowered ride height the inner wheel wells need to be slightly modified.
Recommended backspacing is 135-140mm (7“ ET45; 8“ ET35; 9“ ET25). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
Customer Reviews

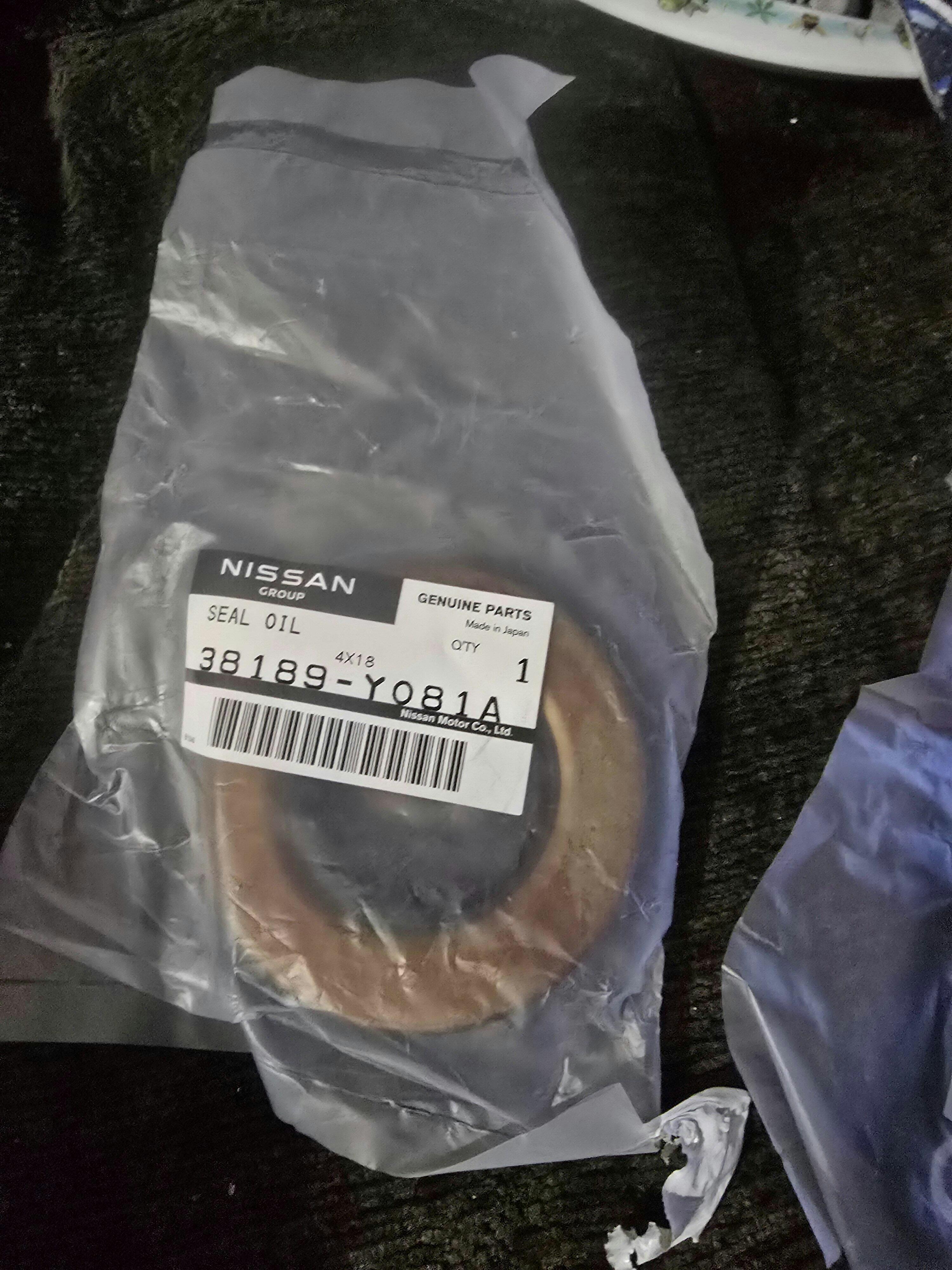

Went to multiple shops for a r200 pinion seal. Got told a few weeks or they needed a sample. I sent Anthony a message and within a week and half I had the seal at my door. Anthony even gave me an update letting me know he had my cas spaced and the diff seal shouldn't be too far away. Will buy from him again in the future. Top bloke to deal with
