Gktech = Z32/R32/S14/S15 caliper bracket to suit 324mm R33 GTR rotor

  • Sale
  • Regular price $290.00


If you're running Z32, R32 (GTS-T), S14 or S15 calipers on your car then have a think about upgrading your rotors from 280mm to a whopping 324mm's.
With these brackets installed 324mm R33 GTR rotors are a direct fit and will significantly increase the surface area of your rotor and help to avoid brake fade whilst also filling your rims and guaranteeing more interest from the opposite kind.

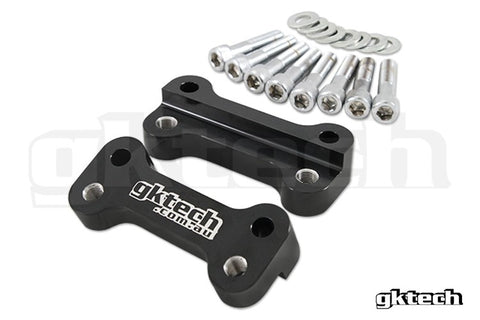

- High-quality billet aluminum 6061-T6 construction with grade 10.9 fittings
- Sold as a pair

Vehicle Compatibility:
- Nissan S13/180sx (with the use of the optional 3mm washers)
- Nissan S14 200SX
- Nissan S15 200SX
- Nissan Skyline R32 GTS-T
- Nissan A31 Cefiro

NOTE: 17" rims or larger required to fit 324mm rotors (rotors are NOT included)

Will this fit my car?
We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
If you are running either R32 GTST-T/ Z32 TT or S14/S15 turbo calipers then this is a straight fit.

Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.

What's the advantage of using the GKTech caliper bracket?
You can easily upgrade your rotors from 280mm to 324mm which drastically increases the efficiency of the brakes, while also avoiding brake fade.

What modifications are required, is this hard to fit?
Simply just remove and refit, to install the larger rotors you need to trim the dust cover and depending on your calipers, you'll need to shave the bit that hits on the bolts. It is super simple and self explinatory when seen.

Is there anything else needed for installation?
Yes, you will need the 324mm rotors to suit these brackets, which you will need to select above.

Can I install this myself? If so how long will installation take?
Yes, being a simply rotor and bracket swap, installation should take around 45 minutes. However, being the brake system we recommend only a trained professional to install this product

What if I'm running R32 GTR calipers?
This will not work as the R32 GTR calipers are 32mm's Vs The R33 GTR rotors being only 30mm's wide.

What will happen if I use standard brake pads?
Although you can use your standard brake pads, you will have a 2mm pad overhang. Using DB1346 or equivalent will reduce the overhang.
