GARRETT MOTION G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM FLOW
- Bearing Type: Ball Bearing.
- Cooling System: Oil &, Water Cooled.
- Horsepower: 450-850hp.
- Displacement: 2.0L - 6.0L Applications.
Product Notes:

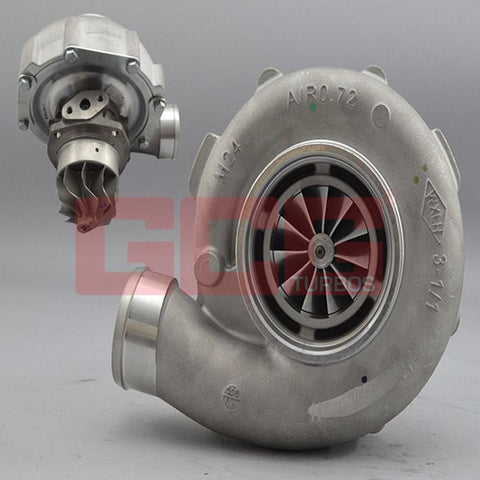

- A ""Supercore"" is a complete turbocharger, without a turbine housing fitted.

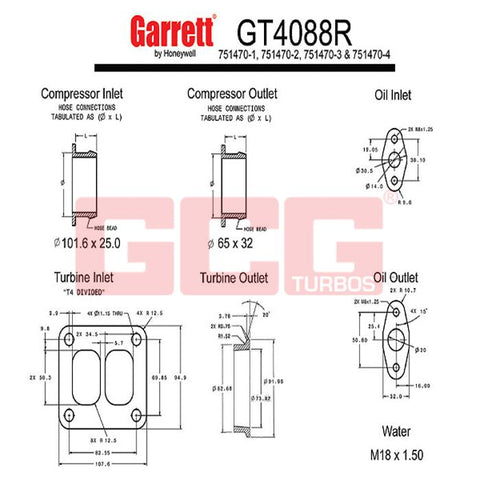

- The GTX4088R Supercore fits directly into any existing GT4088R/GT4094R turbine housings.
- The Turbine Wheel is cast from Inconnel material for extreme applications.
- This Turbocharger has a ported shroud/surge slotted compressor housing to increase surge resistance.
Features of the Garrett GTX range of turbochargers:
- Forged, fully-machined 11-blade billet compressor wheel
- Ported shroud/Surge Slotted compressor housing to increase surge resistance
- 10%+ Gain in flow over traditional GT compressor wheel designs
- 10%+ Higher pressure ratio compared to traditional GT compressor wheel designs
- 11 Full-blade design for improved efficiency and ultra quiet operation.
- Outline interchangeable with Garrett®, GT Series turbos.
- Garrett®, OE-quality for unbeatable reliability.
