* with 66cc Chamber (Pair) 2.21" x 1.30" Intake Port, 1.42" x 1.53" Exhaust Port

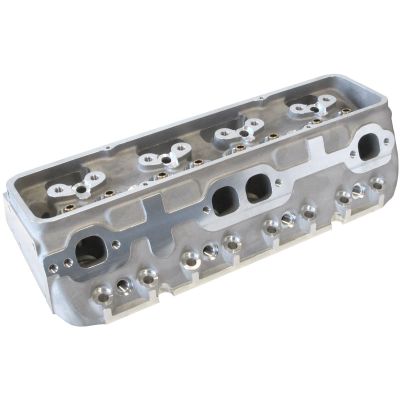

The Aeroflow Series of Aluminum Cylinder Heads are taking affordable performance street and strip cylinder heads to the next level. These heads utilize ultra-smooth A356-T6 aluminum castings, new as-cast runner and chamber designs produce excellent flow numbers. This combined with a 5-angle competition valve job, diamond-honed bronze guides, hand bowl blending and professional assembly help to outperform some of the best brands in the business.
The Aeroflow Performance small block Chevy cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Made from A356 aluminum castings, these 210cc cylinder heads are ideal for operating in the idle to 7500 rpm range. These complete cylinder heads will fit a 4.00" bore and larger.
Head Specifications
Material: A356 Aluminum

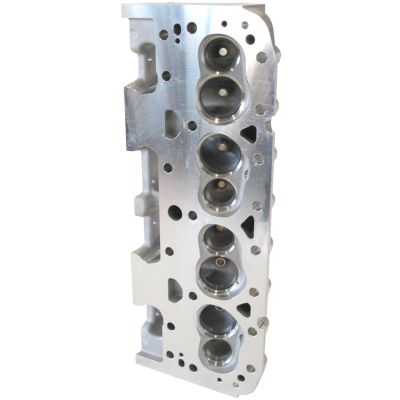

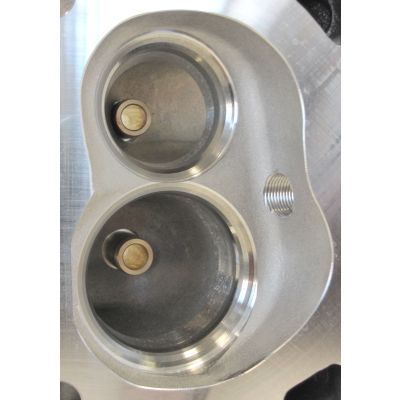

Chamber: 66cc
Intake Port Volume: 210cc

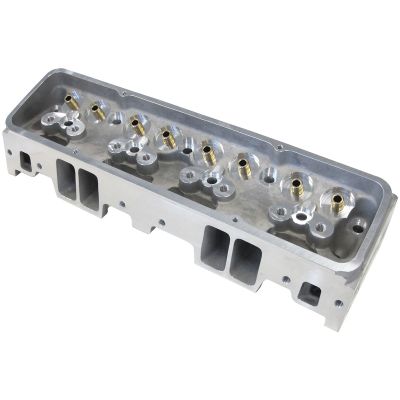

Intake Port Dimension: 2.21" x 1.30"
Exhaust Port Volume: 72cc

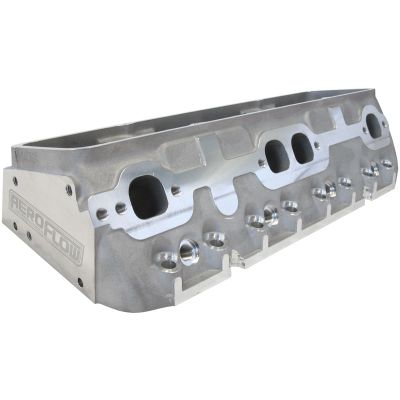

Exhaust Port Dimension: 1.42" H x 1.53" W
Exhaust Port Location: Raised .250"
Spark Plug Location: Angled
Intake Valve Diameter: 2.08"
Exhaust Valve Diameter: 1.60"
Valve Stem Diameter: 8mm
Valve Spring Pocket I.D.: 1.57"
Valve Guide Material: Bronze
Valve Guide O.D.: .502" (.560" at base)
Rocker Stud Thread Size: 7/16" x 14
Valve Angle: 23°
Deck Thickness: .750"
Suggested Components
Head Gasket: Fel-Pro 1003
Intake Gasket (1.34 x 2.21 Port Size): Fel-Pro 1206
Exhaust Gasket (1.55x 1.55 D Port Size): Fel-Pro1405
Head Bolts: ARP 134-3601 or 134-3701
Head Studs: ARP 134-4001 or 234-4301
Spark Plugs (14mm x 3/4" reach with flat gasket seat): Champion RC9YC
IMPORTANT NOTICE:
We recommend checking installed spring seat pressure & open pressure before installing your cylinder heads to make sure the spring pressure is correct for your application.
