Plazmaman R33 RB25DET and R34 RB25DET NEO head Full Billet Runner (to the head) Inlet manifold - 12 Injector Style.
The engineers here at Plazmaman Australia headquarters had only one thing in mind when they designed the Nissan RB25 Inlet manifold - to release a premium quality item that ticks all the boxes. Plazmaman inlet manifolds utilize some of the most advanced manufacturing techniques. Multi axis HAAS CNC machines ensure that all the one piece billet bases have tolerances to within .005. The inlet manifold dome utilizes a hard temper 3mm sheet alloy surface that has been made to shape in house with advanced forming techniques.
Our RB25 manifold is designed as a standalone manifold, so the factory Over the rocker cover Inlet is totally removed, and this manifold is bolted directly to the cylinder head using a single throttle body operation to maximize airflow. The manifold can be built for and supplied with a number of our Plazmaman universal billet throttle bodies or the increasingly popular Bosch Motorsport Drive-By-Wire units, which can be selected prior to ordering.
An added feature of these manifolds is that they can be ordered and manufactured specifically to suit 6, or 12 injector operation. For both options, we include one of our CNC machined fuel rails, in either single feed, or dual feed. Both of these fuel rail styles accept 14mm top feed injectors. The fuel rail comes with all mounting hardware, including stainless steel fasteners and CNC spacers/brackets. Our billet manifolds are offered with, or without a provision for the factory IAC (idle air controller) to be used remotely.
This Plazmaman Inlet now also comes with a special designed under inlet WATER RAIL. This ensures that the water flows through the head back to the radiator exactly the same way Nissan Intended it to. This is the only aftermarket inlet manifold on the market that has this feature and we guarantee zero air locks if plumbed exactly as Plazmaman advises.
These manifolds can be supplied in 3 finishes, Raw, Polished, or powercoated Black, for the stealth look.
As with all Plazmaman inlet manifolds, these are packed with many features such as:
- Built-In Ram Tubes
- 6061 T65 Aluminium.
- 6 or 12 Injector options
- O-ring port seal design.
- Precision CNC machined billet base, with hand made 3mm smooth design plenum dome.
- Professionally Tig welded in house by our highly experienced fabricators.
- Ergonomic appeal and lifetime structural guarantee.
*** PLAZMAMAN also has a range of Flow matched fuel injectors available in the Fuel System Section of this online shop - these will make a great addition to your intake purchase . Any Injector you cannot see please feel free to email/contact us, as we can source them ***

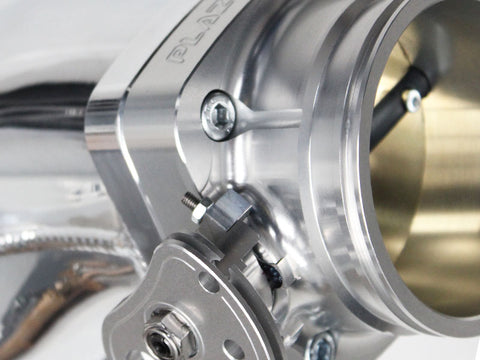

Plazmaman 72mm (+AUD $585.00)
Plazmaman 85mm (+AUD $630.00)
Plazmaman 97mm (1500+Hp race use only recommended) (+AUD $640.00)
Plazmaman 102 LS bolt-pattern (Cable style – Race use only recommended) (+AUD $650.00)
Bosch DBW 74 (+AUD $335.00)
Bosch DBW 82 (+AUD $335.00)
THROTTLE POSITION SENSOR
Bosch DBW N/A
Factory R33 RB25 Series 1 (BYO)
Factory R33 RB25 Series 2 (BYO)
Factory R34 RB25 Neo (BYO)
Plazmaman Universal 3-Wire (+AUD $139.00)
Variohm Contactless (+AUD $235.00)
VACUUM PORT POSITION
Top of manifold
Bottom of manifold
IDLE AIR CONTROL
Bosch DBW N/A
Remotely Mounted R33 Style
Remotely Mounted R34 Style
|Dimensions||70 × 35 × 10 cm|
