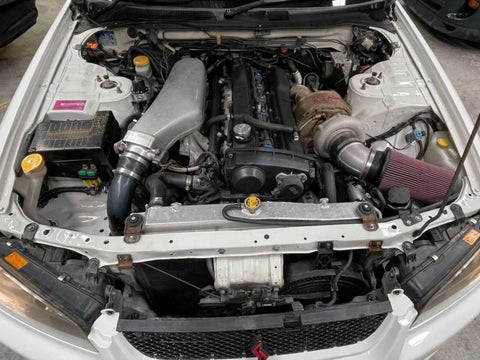

This Plazmaman bolt on inlet plenum is designed to suit Nissan's RB25DET NEO R34 Skyline.
UNFORTUNATELY, DUE TO FUSE-BOX CLEARANCE ISSUES, A FACTORY R34 RB25 NEO OR R33 RB25 THROTTLE BODY CANNOT BE USED WITH THIS PLENUM.
THE FACTORY WASHER BOTTLE CANNOT BE RETAINED WITH THIS INTAKE
There is also enough clearance with this design to be used in most engine converted vehicles. Developed to suit all street, strip, drift and high horsepower applications, with a capability of flowing over 1000hp. By simply bolting this plenum onto the factory runners, and tuning accordingly, expect to see an increase in throttle response, and a power gain of 35+hp. The power gain is sustained throughout the entire mid and top end rpm range. Included with the plenum is a stud and bolt kit, and complete fitting instructions.
CNC machined base with hand crafted dome top plenum, internal ram tubes and 4.5L capacity. All professionally TIG welded in house!
The best part is, this plenum eliminates the factory crossover piping, meaning shorter intercooler piping and quicker boost response. Plus, it is much more ergonomically appealing than the factory intake manifold. Our bolt on plenum utilizes the factory throttle cable, factory idle motor and factory throttle body, although it's recommended that you use one of our billet 66mm or 72mm throttle bodies to take full advantage of this plenum. An 85mm Option is also available but this is only recommended for guys who are seeking well over 1000hp and 40 psi of boost - POA
These manifolds can be supplied in 3 finishes, Raw, Polished, or powercoated Black, for the stealth look.
*** PLAZMAMAN also has a range of Flow matched fuel injectors available in the Fuel System Section of this online shop - these will make a great addition to your intake purchase . Any Injector you cannot see please feel free to email/contact us, as we can source them ***
THROTTLE BODY
Plazmaman 66mm ( +AUD $565.00 )
Plazmaman 72mm ( +AUD $585.00 )
Bosch DBW 68 ( + AUD $340.00 )
Bosch DBW 74 ( + AUD $340.00 )
I Already have a Plazmaman or Bosch T/B ( please specify below )
THROTTLE POSITION SENSOR
Bosch DBW N/A
Factory R34 RB25DET NEO ( BYO )
Plazmaman Universal 3-Wire ( + AUD $139.00 )
Variohm Contactless ( +AUD $249.00 )
ADDITIONAL INFORMATION
Weight | 6 kg |
---|---|
Dimensions | 65 × 25 × 20 cm |
