160H X 195W X 540 MM OVERALL LENGTH

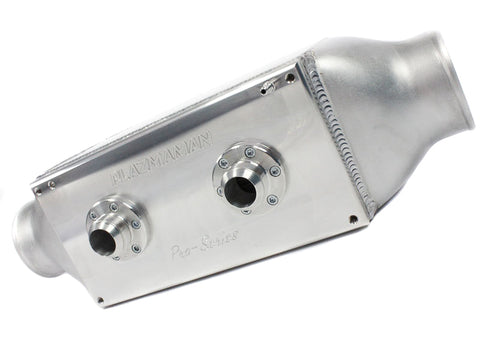

Plazmaman 1500-2000+hp Pro Series Water to Air Intercooler.
- These are our elite PRO-Series range of custom Water to air intercooler for the serious Street or race car.
- Rated at 1500 -2000hp + (800-1200Hp diesel) and utilize our specifically designed light weight core.
- If you have special requirements for a race intercooler we are the people to call to assist you in getting those record breaking track times.
- Light weight compact design to suit all race applications with CNC billet water tanks.
- Feature screw in and bolt on fittings, allowing for unlimited hose size barbs and braided line dash fittings to be used.
- W2A intercoolers allow short track piping to be utilized – minimal turbo lag can be achieved with the right setup.
- Can be stacked on top of each other if dual or more units are required in any single application.
- Suitable for diesel, automotive, marine, motorcycle and stationary.
- This intercooler can be ordered with most outlets sizes available.
- This intercooler can be ordered with Plazmaclamp assemblies also if required.
- Huge range range of sizes, pipe outlet diametres and configurations to suit any application required, including accessories required for complete systems.
- Can be used with ice box for additional cooling.
- We can build a completely custom end tank style – please Contact Us to discuss further options.
**Although it is not recommended, we can manufacture these intercoolers with smaller diameter inlet and outlet sizes to allow for some compact installations. However, to achieve the maximum flow and power benefit from this intercooler core, we suggest 3" or 3.5" outlets, in either push-on hose style, or Plazmaclamps**
