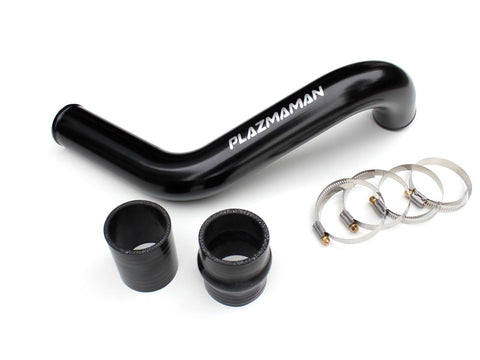

This hot side piping kit is to suit the late model Nissan Navara/Pathfinder 2.5L D40 2007 to 2011 with HOSE CLAMPS both ends. Some late model 2014+ navaras have this same pipe as Nissan went away from the SPRING CLIP versions of (2011-2013). This piping kit replaces the factory rubber hose that runs from the primary intercooler inlet pipe, to the cast aluminium turbocharger compressor housing outlet elbow. Completely constructed from CNC aluminium mandrel bent piping, this kit prevents any flex or compression under high RPM and boost levels. Another advantage of running an internally smooth hard pipe is that it encourages earlier turbo spool up, better turbo note, and better throttle response throughout the rev range.
These kits are available for standard height vehicles, or for vehicles with 2.0" body lift.
NOTE - A body lift is NOT the same as a suspension lift. If you are unsure, please contact us before purchasing.
NOTE - This Hot Piping Kit is to suit the mid model 2007 -2011 Navaras, which have a 135 deg approx aluminium cast elbow from the turbocharger outlet. It has a hose clamp on both ends. Please see the engine bay images for reference.
The piping kit is available in stealth black only.
|Dimensions||50 × 20 × 18 cm|
