GARRETT MOTION GT SER
IES COMPRESSOR AERODYNAMICS FOR MAXIMUM FLOW
Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles.
These turbochargers feature internally waste gated turbine housings and journal bearing rotating groups.
GBC stands for GARRETT BOOST | CLUB LINE.
The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating.

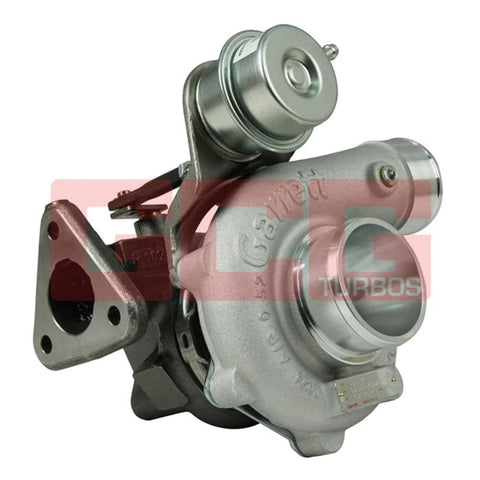

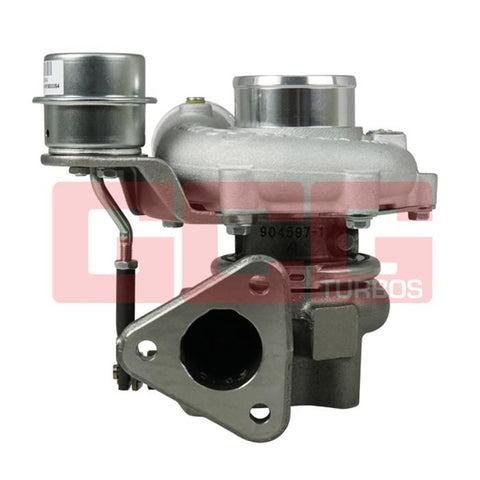

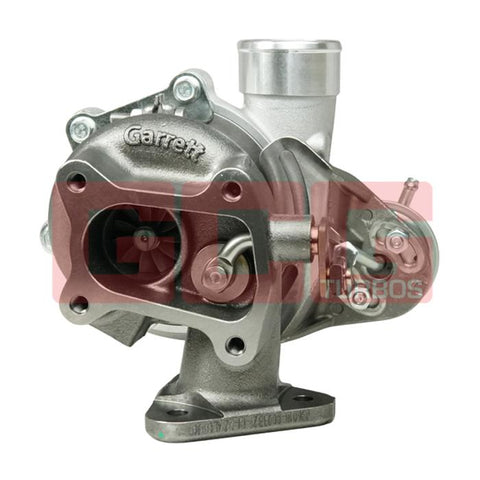

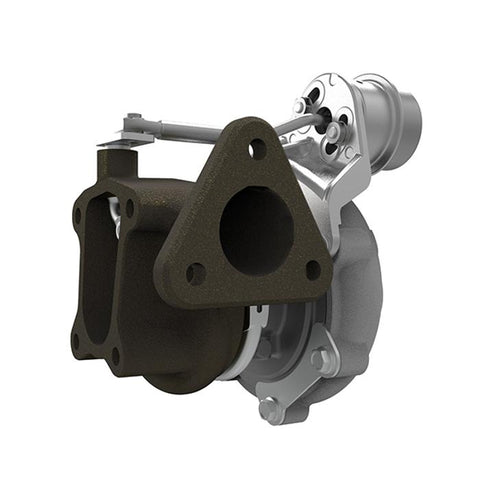

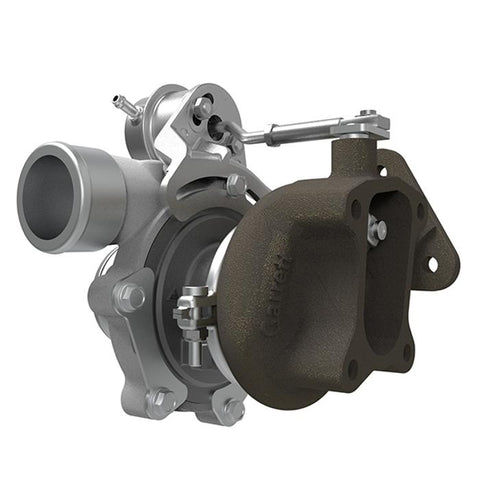

GBC14-200
- 34mm compressor inducer
- Supports up to 200 horsepower
- Forged Fully-Machined Compressor Wheel
- 7psi Actuator standard, upgradeable see options below
- Journal Bearing Rotating Group
- Internally waste gated turbine housing
- Engineered for small displacement engines including powersports, personal watercraft and automobiles
- Gaskets & Flanges sold seperately.
Garrett Boost | Club Line GBC14-200 PN: 896051-5004S |
Compressor |
Turbine |
||||||||
---|---|---|---|---|---|---|---|---|---|---|
Inducer |
Exducer |
Trim |
A/R |
Inducer |
Exducer |
Trim |
A/R |

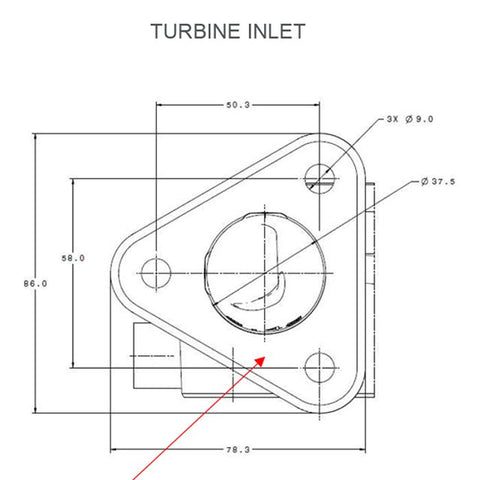

Inlet |

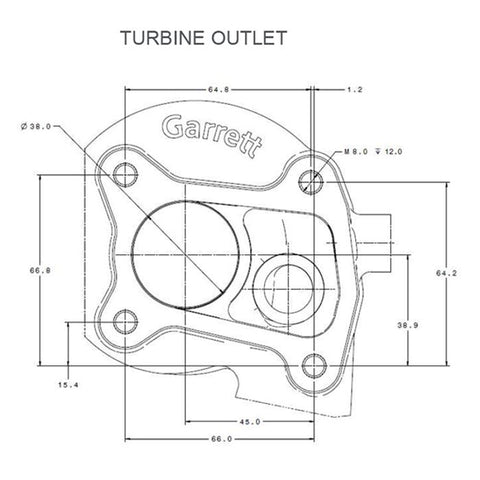

Outlet |
|
34mm |
46mm |
55 |
0.52 |
39mm |
36mm |
84 |
0.45 |
3 Bolt |
4 Bolt |
