- Bearing Type: Journal Bearing.
- Cooling System: Oil Cooled Only.
- Turbine Housing Options:
- Externally Wastegated, Standard Housing, 1.34a/r TA45 Dual Entry.

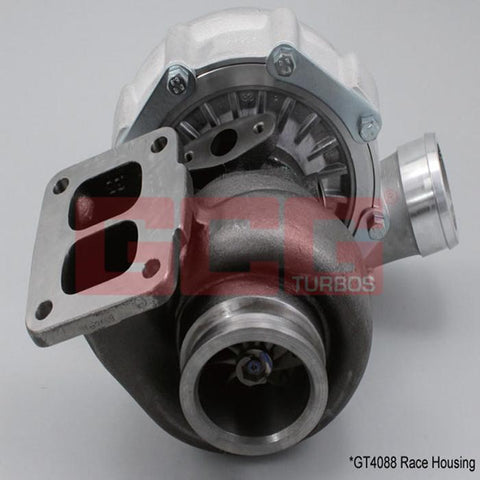

- Externally Wastegated Race Housing, 0.85a/r, 0.95a/r, 1.06a/r and 1.19a/r, T04 Dual Entry.

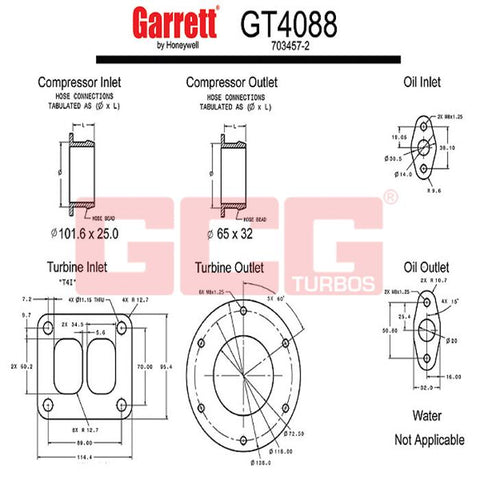

- Base Flange: Standard Housing TA45 Dual Entry, Race Housing T04 Dual Entry.
- Exhaust Outlet Flange: 6 Bolt on Standard 1.34a/r Turbine Housing, 3.0"" V-Band on the ""Race Housings"".
- Horsepower: 450-725hp.
- Displacement: 2.0L - 6.0L.
Product Notes:
- The standard turbine housing that is supplied with the GT4088 is a 1.34a/r, 6 bolt housing, with the TA45 base flange. For a wider range of ratios, and a more compact installation, we offer ""Race Housings"". These housings have a T04 Dual Entry base flange, with a V-Band outlet, and are available in 0.85a/r, 0.95a/r, 1.06a/r and 1.19a/r.
- This Turbocharger has a Ported shroud/Surge slotted compressor housing to increase surge resistance.
