Aeroflow Performance universal valve cover stud kits are designed to hold and secure your valve cover and gasket in place without the worry of loosening. The studs all feature a bullet nose radius on the ends to help locate the pan rail holes; this also allows the nuts to be easily installed without the risk of cross threading.
These studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. All bolts feature a small 12-point head and hardened parallel washers for an even load distribution and accurate torque readings.

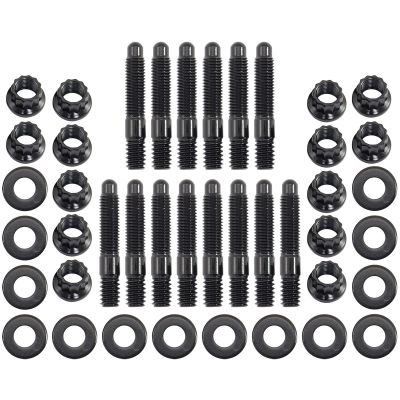

Kit Contains
14 x Studs
38.20mm Overall Length
6.80mm Shank Diameter.
1/4”-20 thread, and 1/4”-28 thread.
21.95mm Thread Length.
14 x 12 Point Nuts
1/4”-28 thread.
10.80mm Outside Diameter.
7.65mm Height.
2.05mm Collar Height.
14 x Flat Small Washers
13.90mm Outside Diameter
6.55mm Inside Diameter
2.05mm Thickness.
* 12 Point Nuts, 8740 Material
