* 1500 - 6500 RPM, Square Bore Carburetor Pad, Non-EGR

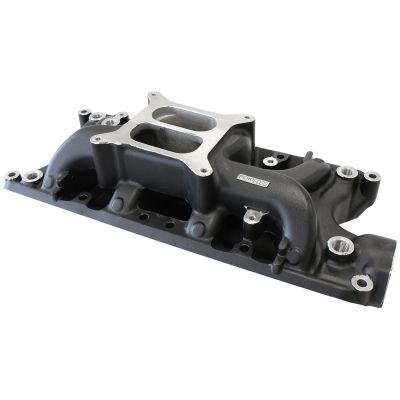

Get the maximum power from your carbureted engine with this Air Gap Small Block Ford carbureted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburetor-mounting pad is designed to accept aftermarket square-bore carburetors with either manual or electric choke options available on today’s market. Specifically designed for 289-302 cubic inch small-block Ford engines operating in the 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.
• Fits Small Block Ford 289 and 302 Windsor Engines.
• Dual Plane Configuration.
• RPM operating range - 1500 to 6500.
• Black Finish.
Manifold Specifications
- Square bore carburetor pad
- Overall height (Carb pad to bottom of manifold) is 154mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.10" x 1.88"
- Intake manifold gasket, Fel Pro 1250
- 5/16-18" carburetor studs (x4)
- 5/16-18" mounting holes (x2)
- 3/8-16" accessory mounting holes (x1)
- 1/4-20" accessory mounting holes (x1)
- 1/2" NPT ports (x1)
- 3/8" NPT ports (x4)
