* 1500 - 6500 RPM, Square Bore Carburetor Pad, Non-EGR

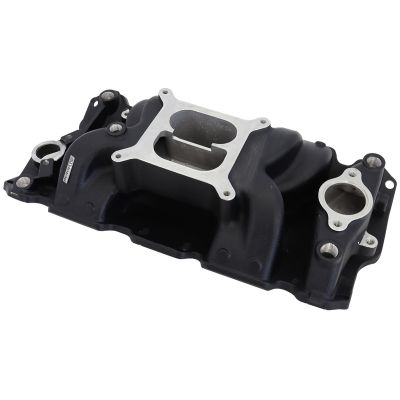

Get the maximum power from your carbureted engine with this Air Gap Small Block Chevy carbureted cast intake manifold. This dual-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburetor-mounting pad is designed to accept aftermarket square-bore carburetors with either manual or electric choke options available on today’s market. Specifically designed for 262-400 cubic inch small-block Chevy engines operating in the1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems.
• Fits Small Block Chevy 262-400 Cubic Inch Engines.
• Dual Plane Configuration.
• RPM operating range - 1500 to 6500.
• Black Finish.
Manifold Specifications
- Square bore carburetor pad
- Overall height (Carb pad to bottom of manifold) is 115mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.15" x 1.95"
- Intake manifold gasket, Fel Pro 1206
- 5/16-18" carburetor studs (x4)
- 5/16-18" mounting holes (x2)
- 3/8-16" distributor hold down mounting hole (x2)
- 1/2" NPT ports (x5)
