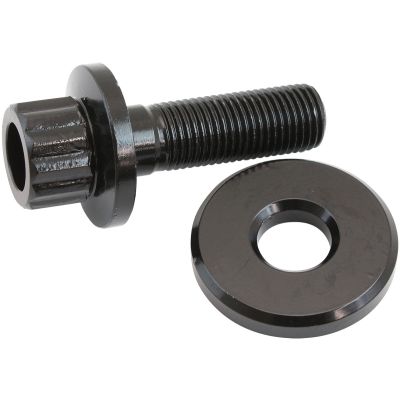

The Aeroflow harmonic balancer bolt is designed to suit Ford Falcon Barra. Manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. They feature a high hex head to prevent socket slippage while rotating the engine during assembly or routine service inspections. An extra thick ground washer is provided to allow for a more accurate, uniform torque.
Sold Individually.
Torque Setting: 140 ft. lbs. (189Nm)
Bolt
Thread size: M14 x 1.50mm
Spanner Size: 3/4
Overall Length: 62.60mm
Under Head Length: 44mm
Head Diameter: 32.05mm
Shank Diameter: 14mm
Shank Length: 6.50mm
Washer
Washer Outside Diameter: 39.75mm
Washer Inside Diameter: 14.25mm
Washer Thickness: 7.05mm
