- Bearing Type: Journal Bearing.
- Cooling System: Oil Cooled Only.

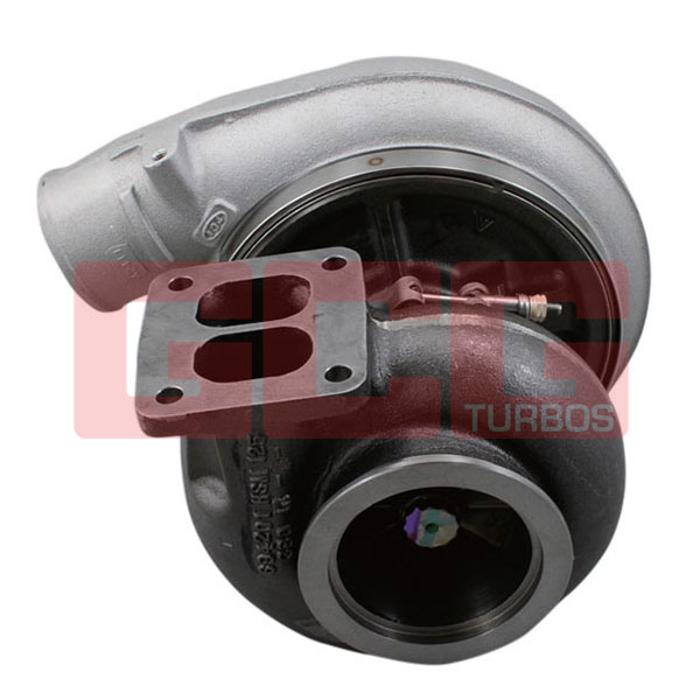

- Standard Turbine Housing: Externally Wastegated, 1.10a/r T04 Dual Entry.
- Base Flange: T04 Dual Entry.
- Exhaust Outlet Flange: 4.0"" V-Band.
- Horsepower: 320-800hp.
Product Notes:
- Turbine Outlet V-Band Clamp and V-Band Flange is sold separately (please see related items below).
Turbo Features:
- Fully Forged Milled, Extended Tip Compressor Wheel.
- Twin hydrodynamic journal bearings
- Extended Tip Technology compressor wheel - Select BorgWarner turbochargers employ BorgWarner ""S"" generation compressor wheels that incorporate extended tip technology. The compressor wheel design feature promotes greater airflow using a low inertia wheel that performs like a wheel of greater size and mass. Extended tip technology enables the user to have faster spool-up at lower engine speeds, while providing the boost for the powerful top-end performance that most turbocharger enthusiasts have come to desire.
- Adjustable compressor and turbine housing orientation.
- Ported shroud/surge slotted compressor housing to increase surge resistance.
